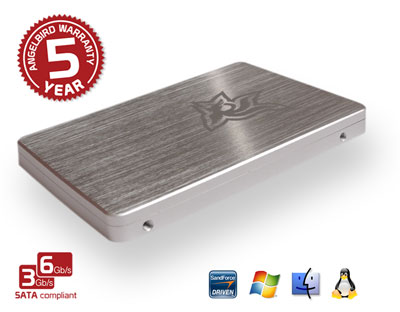

Crest 6 Master SSD

Crest 6 Master SSD



The brand new enterprise class Crest 6 Master SSD drives for your desktop, laptop or server.



To ensure safety and relayability, we built in an UPS. (Uninteruptable Power Supply)

Plus a special designed power circuit which offers overload and statics protection.



Optimal performance is guaranteed by the ultra fast SATA3 6Gb/s interface.



Up to 100x faster than a standard harddisk


Read more ...


Models:
Crest 6 Master 240GBavailable628.80 €
Crest 6 Master 480GBavailable1,360.80 €

Enterprise Class
Crest 6 Master Series

for ultimate performance



The Crest 6 Master Series is our next generation of SSD technology.

Delivering high performance for all your Pro Applications.

Designed and tweaked specifically for even the most demanding environments.

Crest 6 Master SSD
What makes the difference!

Main Features:



  • Designed for enterprise use.
  • Built in Uninterruptible Power Supply. This ensures your drive the highest level of protection.
  • Special designed power circuit. To protect from overloading and static shocks.
  • Optimized design for low latency and super high signal integrity.
  • Designed for use in extended temperature range. This ensures longer live in harsh temperature conditions.

Technical Specifications

  • Capacity: 240GB, 480GB
  • Interface: SATA 6Gb/s, 3Gb/s and 1.5Gb/s supported. SATA 3.0 Compliant
  • Controller: SandForce® SF-2281 Series
  • Over provisioning: ~7%
  • Flash: Grade A Intel® 2Xnm Asynchronous MLC.
  • Form factor: 2.5inch
  • Features: In-drive UPS, Overload protection, TCG OPAL, Auto-TRIM, ECC, RAISE, EMS protection, Builtin cache, SMART
  • Casing material: Aluminium + Steel.



Performance Specifications

  • Sustained Read speed1: up to 550MB/s
  • Sustained Write speed1: up to 520MB/s
  • IOPS2: Up to 85000
  • Access Time: < 0.1ms



Acoustic Specifications

  • Noise (idle): 0.0db
  • Noise (load): 0.0db



Reliability Specifications

  • Warranty: 5 years
  • MTBF: > 2,000,000 hours
  • Data Reliability: Built-in EDC/ECC function
  • Data Retention: 10 years at 25°C
  • ECC: 16 bits per 512 bytes
  • Certifications: RoHS 6/6, FCC, CE



Environmental Specifications

  • Shock (operating): 2000G
  • Vibration (operating): 20G
  • Operating Temp.: 0C ~ +70C
  • Storage Temp.: -40C ~ 85C
  • Operating Humidity: 5% to 95% non-condensing



Electrical Specifications

  • DC input voltage: 5V ± 5%
  • Power usage (idle): 0.5w
  • Power usage (max): 3.0W



Physical Dimensions

  • Form factor: 2.5inch
  • Width: 69.9mm ± 0.2mm
  • Height: 9.5mm ± 0.2mm
  • Lenght: 100.2mm ± 0.2mm
  • Weight: 80.5g



1 Tested with ATTO Benchmark Tool v2.46.

2 Disk aligned / 4KB random write / QD 30
