Wings PX1

Get it to the Max!

USD 75.00
In Stock. Ships within 48h

Overview

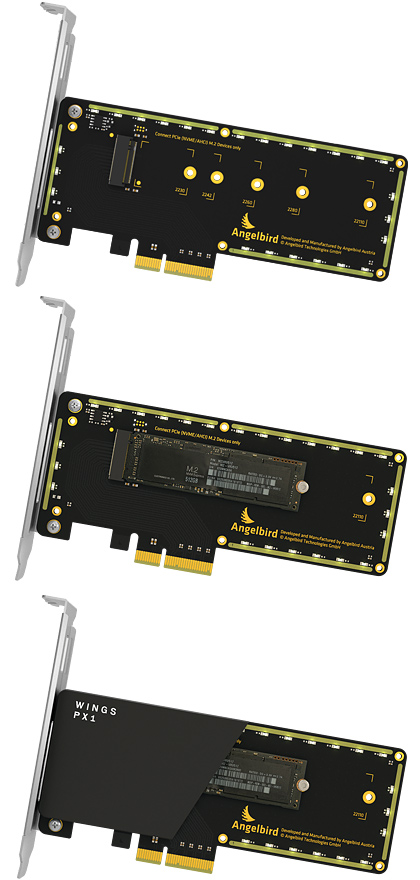

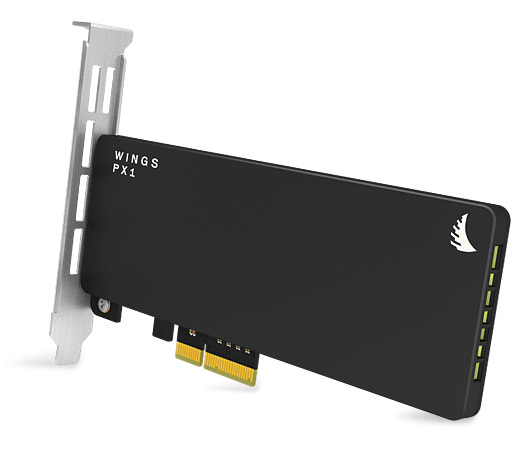

Wings PX1

Get it to the max

The Wings PX1 offers full, unrestricted performance supporting both M.2 NVMe and AHCI SSDs. Compatible with all M.2 Form Factors, from 2230 to 22110. The optimally cooled Wings PX1 was developed from scratch to deliver maximum results with no reduction or instability of throughput caused by poor or nonexistent thermal dissipation, bad data line signal integrity, or voltage fluctuations.

Thermal Throttling PreventionWhite LED backlight
Optimal Signal IntegrityPower Stabilization
Maximum Copper™CNC worked heatsink
EMI, HF, Ground ShieldingRock Solid Built

Technical Specifications

General Specifications

TypePCIe x4 adapter for PCIe M.2 SSDs
ConnectivityPCIe Gen3 x4. Backwards compatible down to PCIe Gen1 x4.
M.2 NGFF PCIe SSDs up to PCIe Gen3 x4.
M.2 form factors 2230, 2242, 2260, 2280 and 22110.
NVME, AHCI, PCIe
Dimensions157 x 69 x 8 mm (6.18 x 2.72 x 0.31 inch), Low-profile, half-length PCB
Weight~115.0 g (~4.1 oz)
Features Thermal Throttling prevention, Full Signal integration with length and phase-matched data traces, HF shielding, Ground shielding, Power stabilization, White LED backlight, CNC-worked aluminium heatsink, Maximum Copper™ for optimal thermal dissipation

Compatibility List 1, 3, 4, 5

M.2 AHCI SSDs
PlextorM6e 128GB
M6e 256GB
M6e 512GB
SamsungXP941 128GB
XP941 256GB
XP941 512GB
SamsungSM951 128GB
SM951 256GB
SM951 512GB
M.2 NVMe SSDs
SamsungXP941 128GB
XP941 256GB
XP941 512GB
SamsungSM950 Pro 256GB
SM950 Pro 512GB
SamsungSM951 128GB
SM951 256GB
SM951 512GB
SamsungSM960 Pro 512GB
SM960 Pro 1024GB
SM960 Pro 2048GB
SamsungSM960 EVO 250GB
SM960 EVO 500GB
SM960 EVO 1000GB
SamsungSM961 1TB
ToshibaXG3 Series

Warranty 2

10 Years Limited Warranty.


Package contents

  • Wings PX1 PCIe card
  • Low Profile Bracket
  • Screw and spacer pack
  • CNC worked matte black heatsink
  • Thermal pad pack
  • Activation code for additional free software licenses and content

Certifications

CE, FCC, RoHS


1 Angelbird tested and certified.

2 To receive the full limited manufacturer warranty, it is required to register and activate the product on the Angelbird Personal Service Portal within thirty (30) days after purchase. The required activation code is provided in the product packaging. When the product is not registered within this period, the legal guarantee period is in effect.

3 Plextor is a registered trademark of Plextor LLC.

4 Samsung is a registered trademark of Samsung Electronics Co., Ltd.

5 Toshiba is a registered trademark of Toshiba Corporation.
