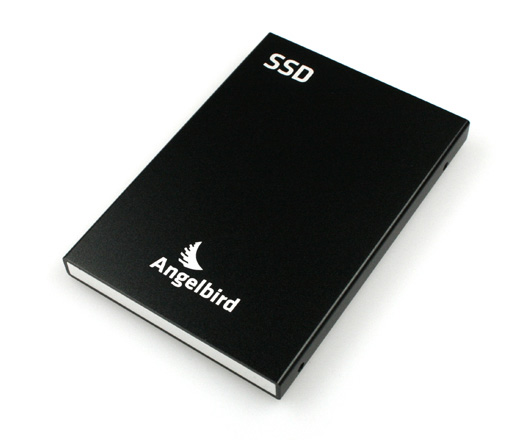

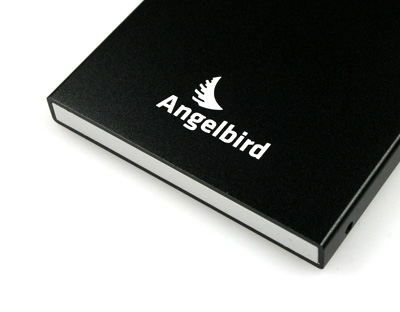

Crest XTC
internal SATA 3 6Gb/s
high performance for little money
from $89.99
Ships within 24h.
configure
Overview
Xtreme Transfer Class
The brand new Crest Xtreme Transfer Class SSD drives for your desktop and laptop computer. Built from ground up for handling your day to day tasks. Gaming, photos, video, audio ... you name it!
High Performance
Delivering high performance for a very affordable price.
Daily Use
Designed and built for your day to day tasks.
Ultimate Performance
Optimal performance is guaranteed by the ultra fast SATA3 6Gb/s interface. This makes the Crest 6 Master drives up to 100x faster than a standard harddisk!
Main Features
- Designed to be an allrounder.
- Same manufacturing quality as our master class products.
- Special designed power circuit to protect from overloading and static shocks.
- Optimized design for low latency and super high signal integrity.
Technical Specifications
General Specifications
| Capacity | 60GB, 120GB, 240GB, 480GB |
|---|---|
| Interface | SATA 6Gb/s, 3Gb/s and 1.5Gb/s supported. SATA 3.0 Compliant |
| Controller | SandForce® SF-2281 Series |
| Over provisioning | ~7% |
| Flash | Grade A Intel® or Micron® Asynchronous MLC |
| Form factor | 2.5 inch / 2.5 inch slim |
| Features | Overload protection, TCG OPAL, Auto-TRIM, ECC, RAISE, EMS protection, Builtin cache, SMART |
| Casing material | Aluminium |
Performance Specifications
| Sustained Read speed1 | up to 560MB/s |
|---|---|
| Sustained Write speed1 | up to 530MB/s |
| IOPS2 | Up to 80000 |
| Access Time | < 0.1ms |
Acoustic Specifications
| Noise (idle) | 0.0db |
|---|---|
| Noise (load) | 0.0db |
| Vibration | 0 Hz |
Reliability Specifications
| Warranty | 3 years |
|---|---|
| MTBF | > 2,000,000 hours |
| Data Reliability | Built-in EDC/ECC function |
| Data Retention | 10 years at 25°C |
| ECC | 16 bits per 512 bytes |
| Certifications | RoHS 6/6, FCC, CE |
Environmental Specifications
| Shock (operating) | 2000G |
|---|---|
| Vibration (operating) | 20G |
| Operating Temp. | 0°C ~ +70°C |
| Storage Temp. | -40°C ~ 85°C |
| Operating Humidity | 5% to 95% non-condensing |
Electrical Specifications
| DC input voltage | 5V ± 5% |
|---|---|
| Power usage (idle) | 0.5w |
| Power usage (max) | 3.0W |
Physical Dimensions
| Width | 69.9mm ± 0.2mm |
|---|---|
| Height | 9.0mm ± 0.2mm |
| Lenght | 100.2mm± 0.2mm |
| Weight | 80.5g |
1 Tested with ATTO Benchmark Tool v2.46.
2 Disk aligned / 4KB random write / QD 30.
