Overview
For Professional use
Designed for professional Small Office and Home Office use. For those who need the best.

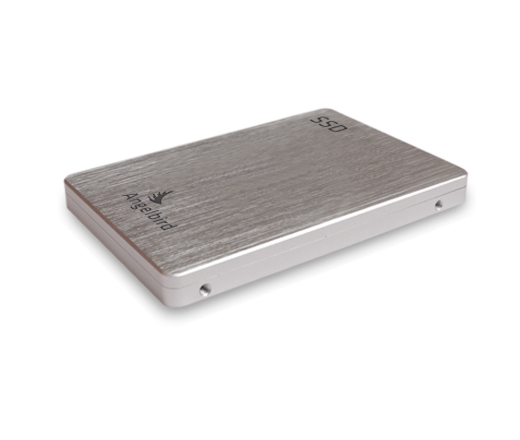

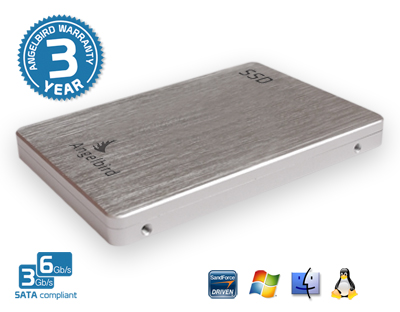

The brand new professional class Crest 6 Pro SSD drives for your desktop, laptop or server. The Crest 6 Pro Series is our next generation of SSD technology, delivering high performance for all your professional applications. Designed and tweaked specifically for even the most demanding environments.
Reliable
To ensure safety and reliability, we built in a UPS (Uninterruptable Power Supply) plus a special designed power circuit which offers overload and statics protection.
Ultimate Performance
Optimal performance is guaranteed by the ultra fast SATA3 6Gb/s interface. This makes the Crest 6 Pro drives up to 100x faster than a standard harddisk!
Main Features
- Designed for professional use.
- Built in Uninterruptible Power Supply. This ensures your drive the highest level of protection.
- Special designed power circuit to protect from overloading and static shocks.
- Optimized design for low latency and super high signal integrity.
- Designed for use in an extended temperature range. This ensures longer live in harsh temperature conditions.
Technical Specifications
General Specifications
| Capacity | 120GB, 240GB, 480GB |
|---|---|
| Interface | SATA 6Gb/s, 3Gb/s and 1.5Gb/s supported. SATA 3.0 Compliant |
| Controller | SandForce® SF-2281 Series |
| Over provisioning | ~7% |
| Flash | Grade A Intel® or Micron® Asynchronous MLC |
| Form factor | 2.5 inch |
| Features | In-drive UPS, Overload protection, TCG OPAL, Auto-TRIM, ECC, RAISE, EMS protection, Builtin cache, SMART |
| Casing material | Aluminium |
Performance Specifications
| Sustained Read speed1 | up to 560MB/s |
|---|---|
| Sustained Write speed1 | up to 530MB/s |
| IOPS2 | Up to 85000 |
| Access Time | < 0.1ms |
Acoustic Specifications
| Noise (idle) | 0.0db |
|---|---|
| Noise (load) | 0.0db |
| Vibration | 0 Hz |
Reliability Specifications
| Warranty | 3 years |
|---|---|
| MTBF | > 2,000,000 hours |
| Data Reliability | Built-in EDC/ECC function |
| Data Retention | 10 years at 25°C |
| ECC | 16 bits per 512 bytes |
| Certifications | RoHS 6/6, FCC, CE |
Environmental Specifications
| Shock (operating) | 2000G |
|---|---|
| Vibration (operating) | 20G |
| Operating Temp. | 0°C ~ +70°C |
| Storage Temp. | -40°C ~ 85°C |
| Operating Humidity | 5% to 95% non-condensing |
Electrical Specifications
| DC input voltage | 5V ± 5% |
|---|---|
| Power usage (idle) | 0.5w |
| Power usage (max) | 3.0W |
Physical Dimensions
| Width | 69.9mm ± 0.2mm |
|---|---|
| Height | 9.5mm ± 0.2mm |
| Lenght | 100.2mm ± 0.2mm |
| Weight | 80.5g |
1 Tested with ATTO Benchmark Tool v2.46.
2 Disk aligned / 4KB random write / QD 30
